Name: 4000V Miniature Current Sense Transformer PCB Mount
Brand: Shinhom
Price: 1 USD

Brand Name : Shinhom

Model Number : ACST Series

Certification : RoHS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Turns : 1:50, 1:100, 1:200 and 1:300, 1:50CT, 1:100CT, 1:200CT, 1:300CT

Frequency range : 1kHz to 1MHz

Hi-Pot : 4000V,1mA,60S

Inner hole : 4.5mm

Temperature range : 0℃ to +85℃

Storage Temperature : -25℃ to +85℃

Contact Now

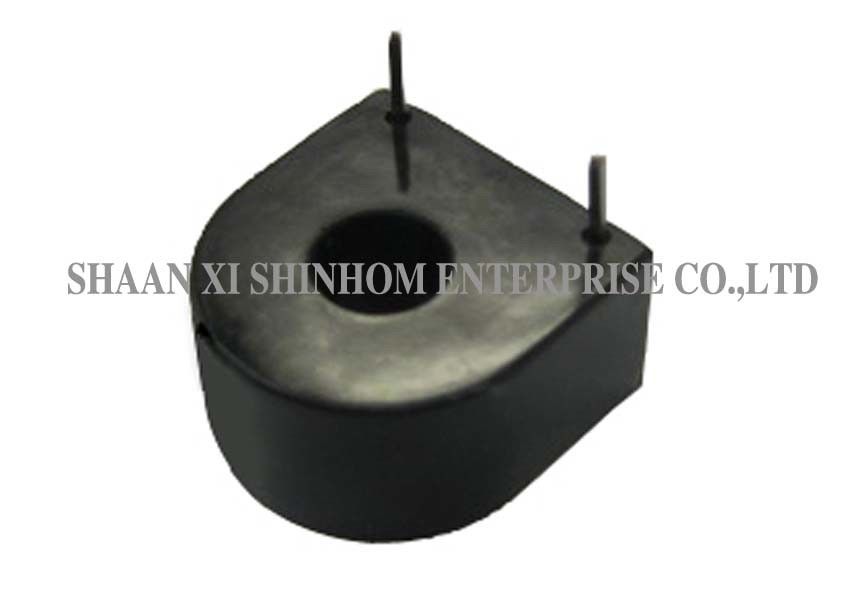

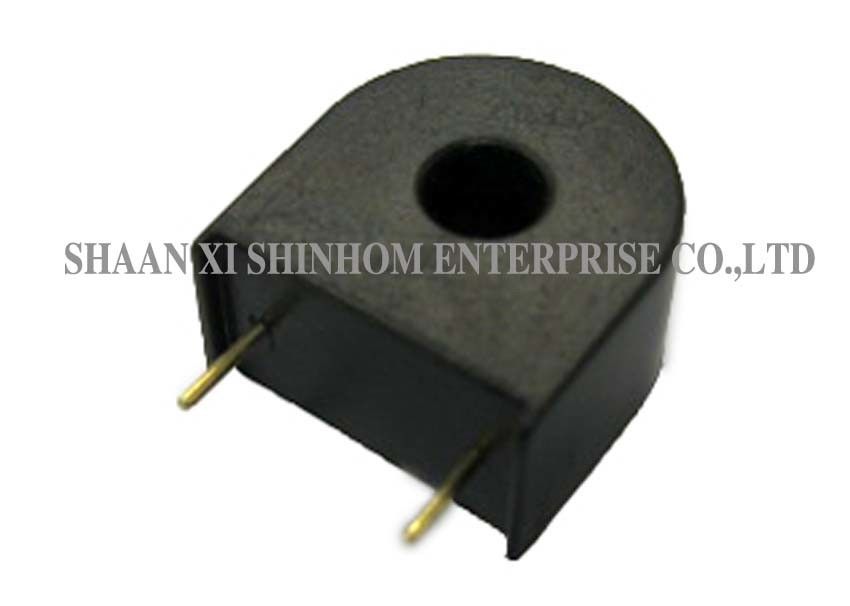

ACST Series PCB Mount Miniature small DC Immune Current Transformer, CT,Current transformer Manufacturer

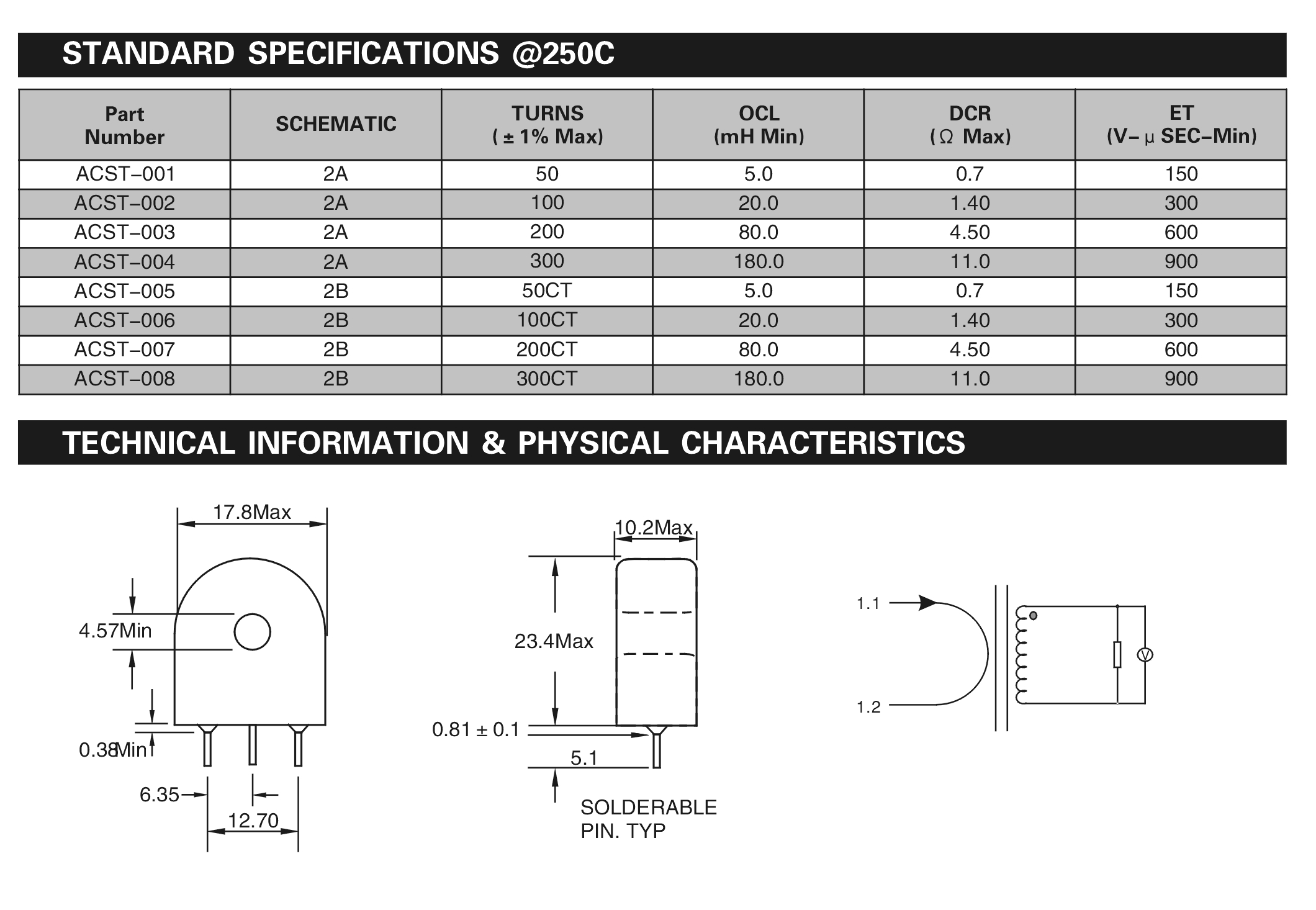

Model	ACST-00X
Rated input current	0-20A(100Ω)
turns ratio	1:50, 1:100, 1:200 and 1:300, 1:50CT, 1:100CT, 1:200CT, 1:300CT
linear range	0~20A(sampling resistor 100Ω)
linearity	0.2%(5%dot~120%dot)
application	current and power measurement
isolation voltage	2000V
Encapsulation	Epoxy
installation	PCB mounting(Pin length>3mm)
operating temperature	0ºC~+85ºC
Storage Temperature	-25℃ to +85℃
Working frequency range	1kHz to 1MHz
Insulation resistance	500V DC >100MΩ
Resistance to soldering heat	260℃ for 10 seconds

APPLICATIONS:

AC energy Meter Power transducer RTU
Protection current transformer
AC kilowatt hour meter
Electronical monitoring system
high-frequency current control circuit and pulse current test, AC/DC, DC-DC converters

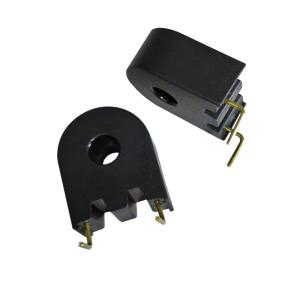

4000V Miniature Current Sense Transformer PCB Mount

Note: Product specifications can be customized.
